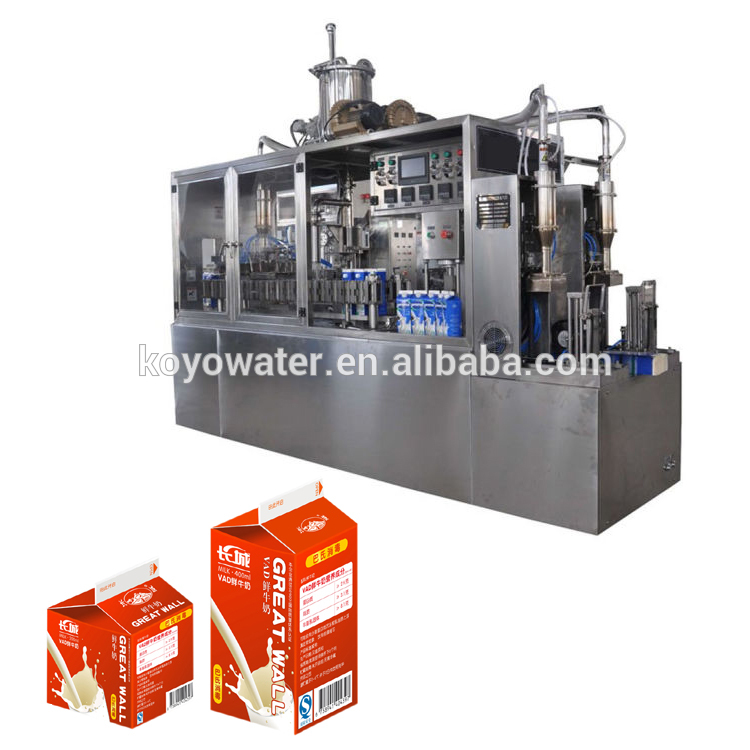

Gable-top cartons without screw cap filling machine
Gable-top cartons without screw cap filling machine
This machine can fill 250-1000ml brick paper aluminum composite box. It is for water, milk, juice and other beverage drinks. This machine adopts paper aluminum composite material, automatic batch-type working. Flow as below: workman put box - automatic folding forming - automatic filling - automatic sealing - automatic bevel hot sealing - automatic falling box.
PLC human control, Human - Machine Interface with English and Chinese display. Intuitive operation and Low Fault rate. The forming system we choose our own patent rectangular forming method instead of roundness system. this system made the running much more stable, the function much more reliable, the exterior appearance.
Technical Parameters:
1)Capacity:800-1200 boxs/H
2)Sealing:By high frequency
3)Power:6KW 380V 50Hz
4)Weight:1000KG

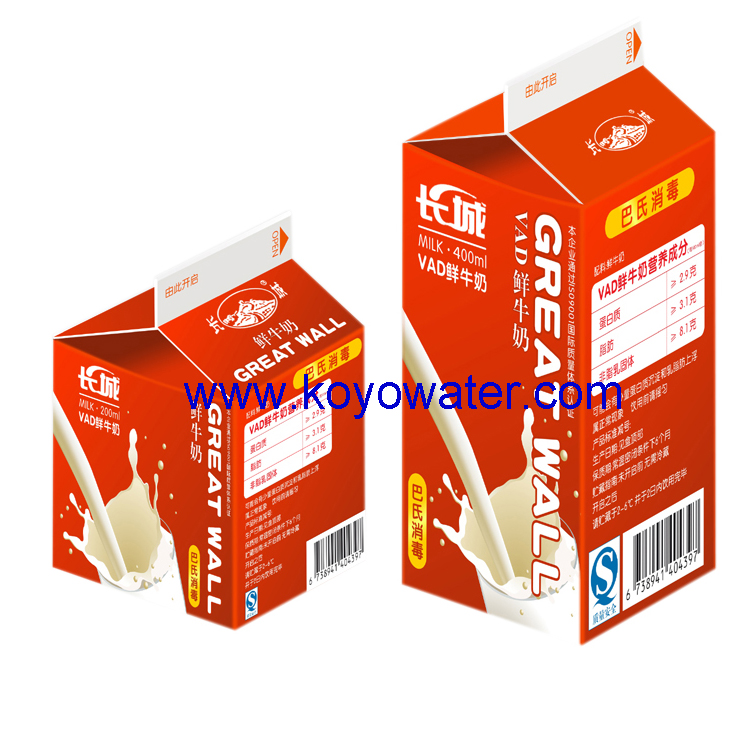

5)Packaging material: roof cardboard box or roof aluminium foil cartonWith caps.
6)Shape size: 3.5*1.3*2.6 M
7)Compressed air: flow rate: 0.8-1.0M3/min
Pressure: 0.6-0.8Mpa No oil, no dust
8)Filling Type:Atmospheric pressure filling
9) Filling temperature:2-50° 80-88°
10)Filling Range: 250ML-2000ML
11)Filling error:±0.5ml
12)Air Consumption：80L/min
13)Installation request:Cement,floor tiles and plastic floors can be used,not need the corners.
